carrot 3.

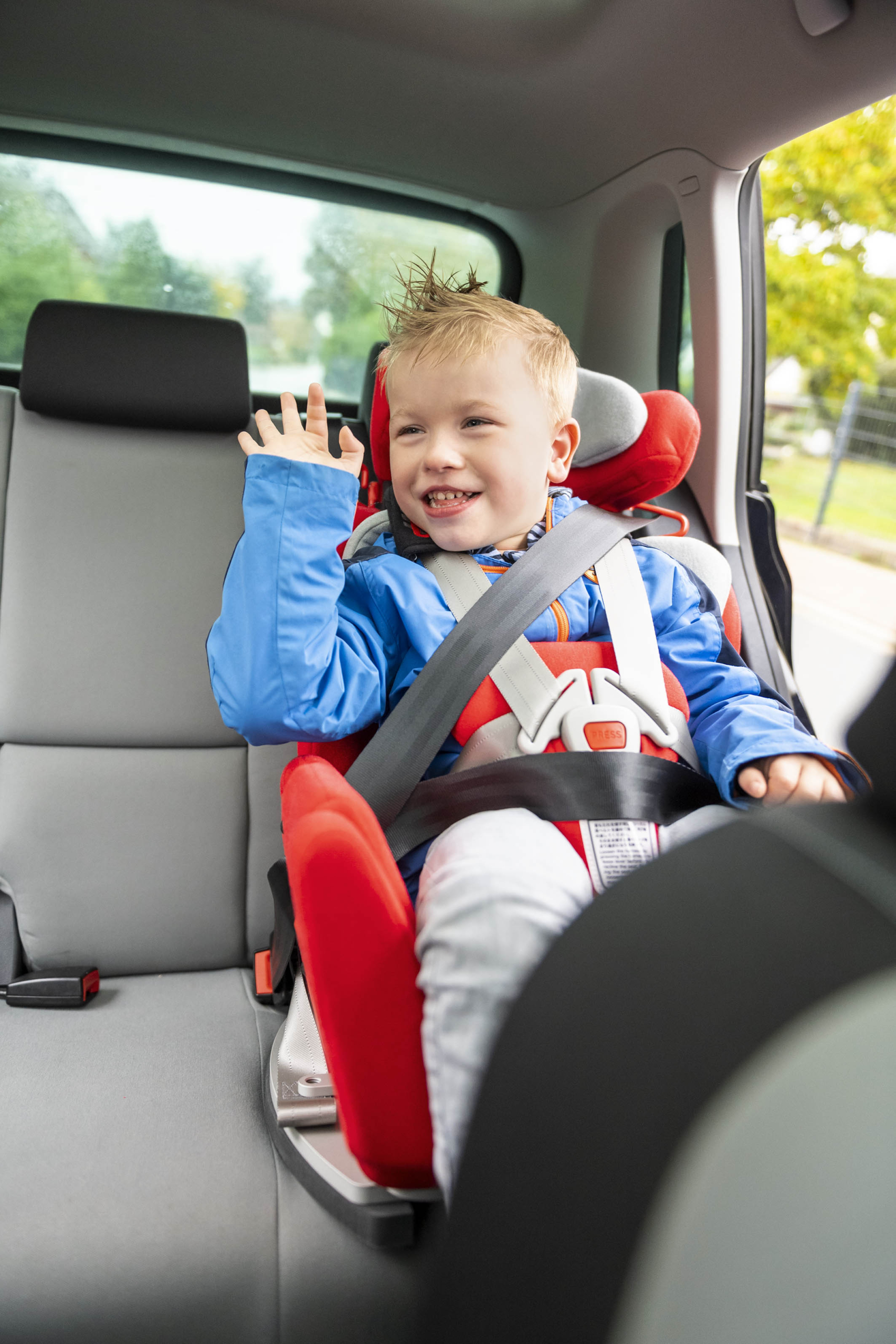

I am your supportive car seat.

I like car rides. Do you? You can take me on the drive with you. With me you can get anywhere safely and comfortably. I have been crash tested to the highest levels for use in both the front and the back seats of the vehicle. To make it easier to get into and out of I can turn on a turntable to either 90 or 100 degrees.

Highlights

What carrot 3. can do:

For extra safety:
tested according to the requirements of the child car seat standard ECE-R44/04
For more flexibility:
mounting on the passenger or rear seat
For easy transfer:
base plate swivels up to 90°; backrest reclines in three stages
For a stable and upright sitting position:
emovable chest pads; anatomically shaped side pads; support and positioning straps
For individual needs:
height-adjustable padded headrest, optional height-adjustable footrest, removable for transfer
For more comfort:
removable seat cover

Technical details

Data	Size S		Size L		Size XL
Seat depth	25 cm	28,5 cm	25 cm	28,5 cm	44 cm
Seat width	26 cm		26 cm		38 cm
Backrest height	30- 40 cm		45 – 55 cm		50 – 60 cm
Headrest height	52 – 62 cm		67 – 77 cm		73,5 – 83,5 cm
Total width	42 cm		46 cm		46 cm
Footrest height	25 – 46 cm		25 – 46 cm		25 – 46 cm
Max. load*	10 – 50 kg		10 – 50 kg		40 – 75 kg
Body height	up to 145 cm		up to 160 cm		up to 176 cm
Weight**	from 8 kg		from 8 kg		from 8 kg

* The carrot3. has been tested to ECE R44 / 04 from 15 to 36 kg. In addition, dummies of 10, 49 and 75 kg were tested with success in accordance with the standard.
** In cases with support from GB or consultant.
